Linear systems and filtering

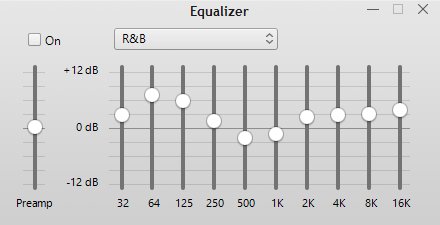

This audio equalizer from Apple iTunes is made possible by a collection of digital frequency-selective filters.

Filtering signals digitally

One of the main advantages of living in the computer/smartphone/wearable age is that digital processing power is widely available!

In the olden days, if we wanted to process information, we had to build a machine to accomplish a very specific task. The ability of the processing to adapt to the signal or task was very limited.

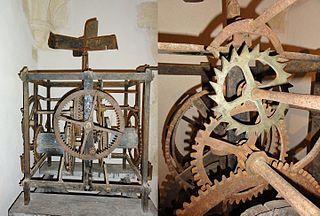

A mechanical clock contains a series of gears calibrated to tell time. What if we suddenly decided an hour was composed of 100 minutes instead of 60? We’d need a new clock! (Image credit: Jose Manuel/Wikipedia)

A sextant is specifically constructed to measure angles between objects in the sky and the horizon.

Many of these devices are programmable, allowing us to process signals how we see fit.

So what is filtering?

A filter is a system that permits some information to pass through the system while suppressing other information.

What is a system?

A system performs a mathematical operation, or operations, on one or more input signals, to produce one or more output signals.

A digital filter processes a digital input signal to produce the desired digital output signal.

There are many kinds of digital filters. The equalizer shown earlier is one example. What is an equalizer?

Applications of filtering

The notion of filtering is not new to digital, however. It has shown up for a long time in many mundane places:

Let’s think how we use digital filters in our everyday lives:

What is being filtered in each of these examples?

Peer activity

Instructions: Take few moments and discuss one of the digital filtering applications we identified with someone next to (or seated near) you. Note your answers to these three questions:

We will discuss your answers as a group.

Let’s talk about systems

A system (call it T) takes one or more inputs $x_1, x_2, \cdots,$ and produces one or more outputs $y_1, y_2, \cdots,$

Let’s constrain ourselves to one input and one output to start.

We will work with digital systems, but it is more convenient to study discrete-time (DT) systems with continuous-valued inputs $x[n]$ and outputs $y[n]$.

The following diagram describes such a system:

The distinction of working with discrete-valued digital signals is important, but makes analysis much more complicated.

Properties of systems

While a complete discussion of system properties is more appropriate for a later course, there are a couple of important properties that will make our study of filters much easier:

We already saw linearity in another context: the spectrum of a signal.

Linearity of a system is the same principle: additivity and scaling

For an input $x[n]$, the system $T$ produces the output $y[n] = T(x[n])$

Then, \(y_1[n] = T(x_1[n]), \quad y_2[n] = T(x_2[n])\)

then additivity and scaling say \(y_1[n] + y_2[n] = T(x_1[n] + x_2[n]), \qquad c\,y_1[n] = T(c\,x_1[n]),\)

and the two together give \(a\,y_1[n] + b\,y_2[n] = T(a\,x_1[n] + b\,x_2[n]).\)

Linearity is a very powerful property that ensures systems are well-behaved:

The system behaves the same no matter how the signal is scaled.

Given a input composed of multiple signals, we can describe the output by processing those component signals individually.

Unfortunately, very little in the world is strictly linear:

Quantization is fundamentally nonlinear, so digital processing is inherently nonlinear.

Real systems have physical limits on the range of possible inputs and outputs. These limits cause saturating, nonlinear behavior.

Fortunately, real systems can be approximately linear over a useful range.

Which is linear/nonlinear?

Consider idealized examples of the following systems. Which are linear?

Time Invariance

Time invariance is another simplifying property that some systems have: processing a time-shifted input produces the output, time-shifted by the same amount. $y[n] = T(x[n]) \rightarrow y[n-n_0] = T(x[n-n_0])$

Some examples:

Let’s show the following are not time-invariant:

Some real-world examples of time-invariant systems:

The audio equalizer

Noise-cancelling headphones

A real-world example that is not time-invariant:

Many systems behave differently as the environment changes, e.g., a car (road, fuel), sound system (humidity, temperature)

Linear, time invariant (LTI) systems

The class of systems that are both linear and time-invariant is a very important class in signal processing theory. While a detailed discussion of these systems will wait for a future course, the frequency representation of these systems is very powerful.

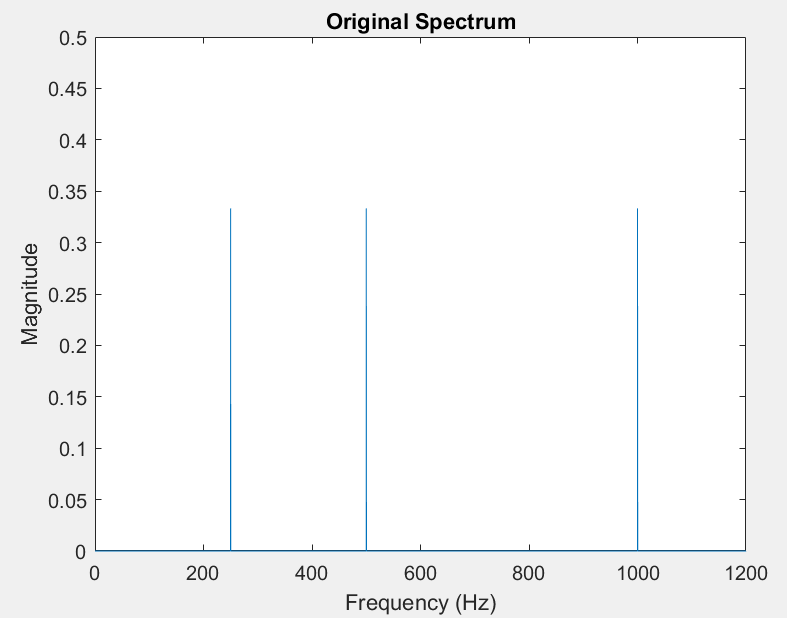

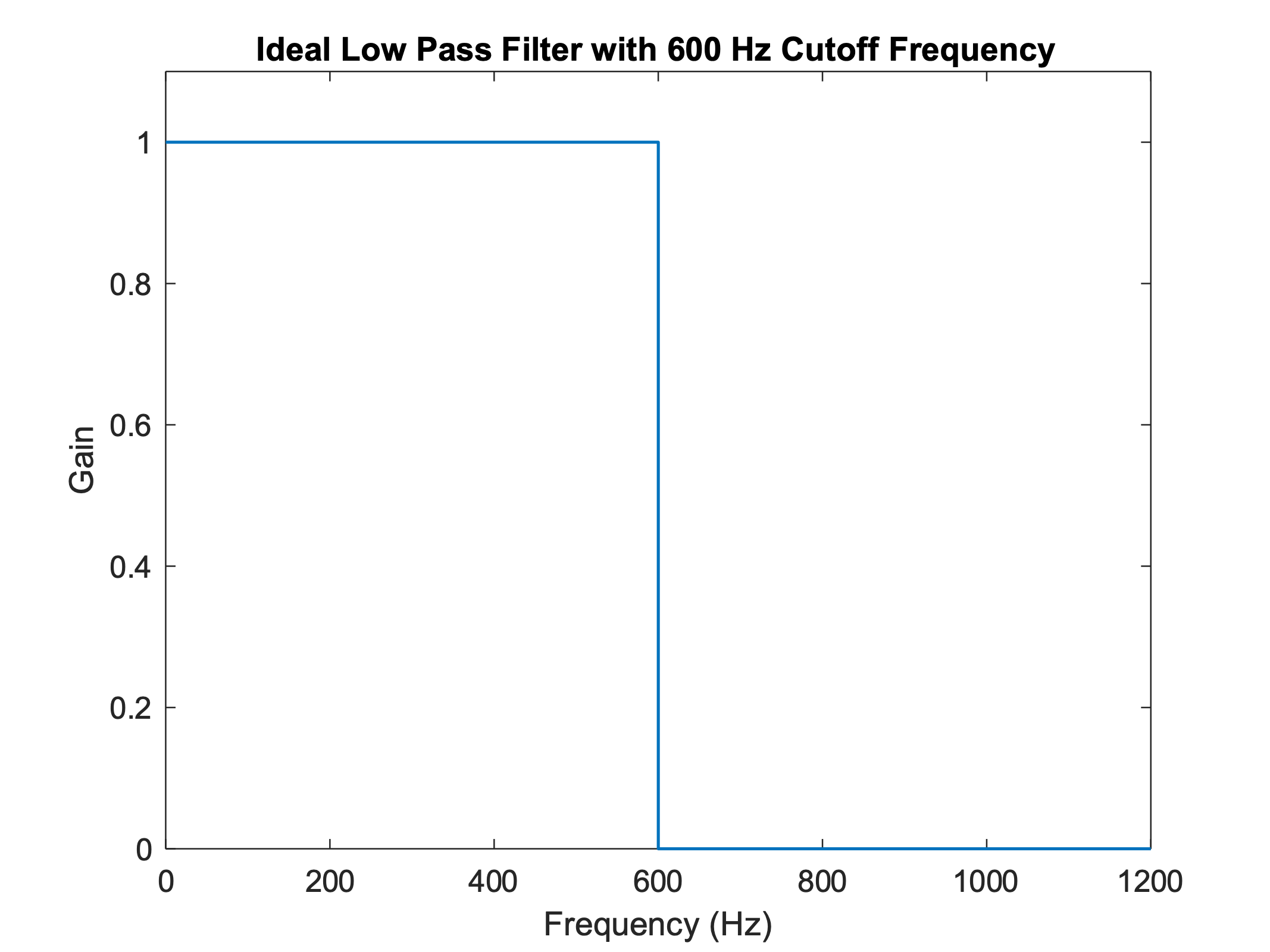

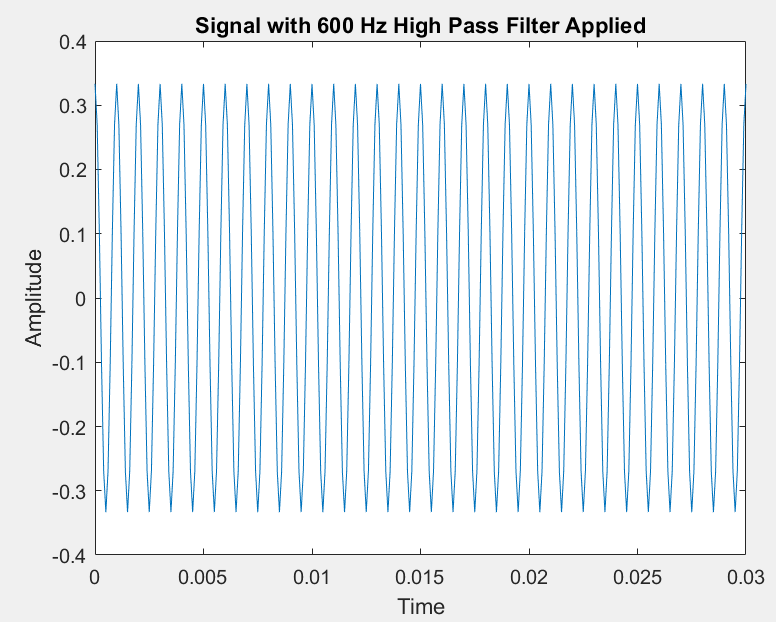

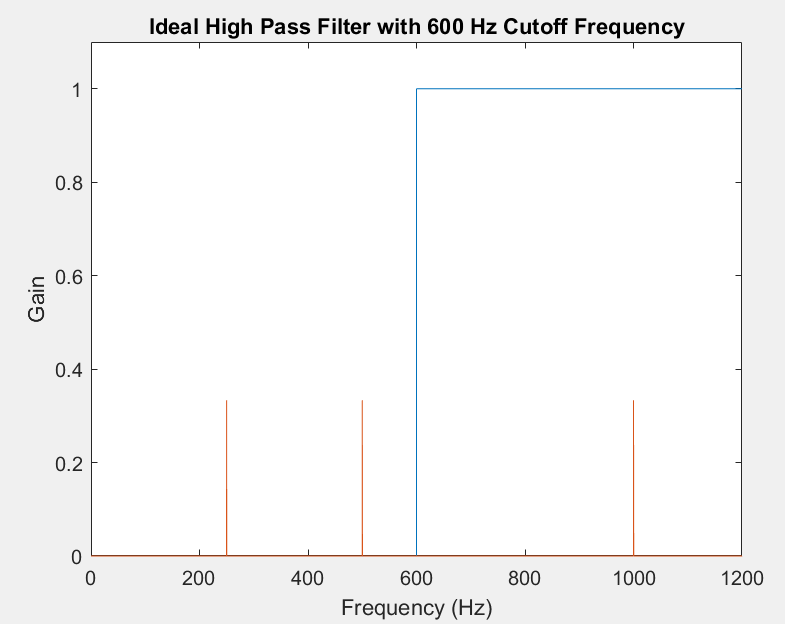

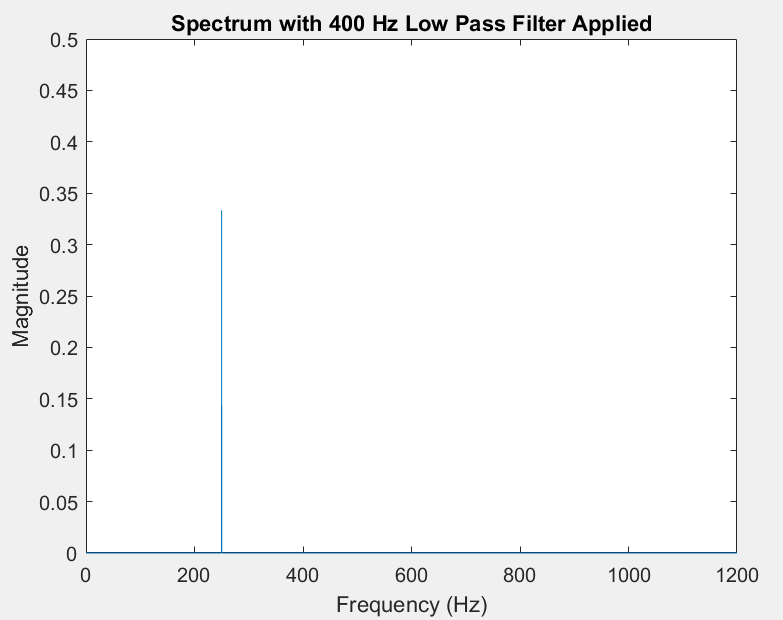

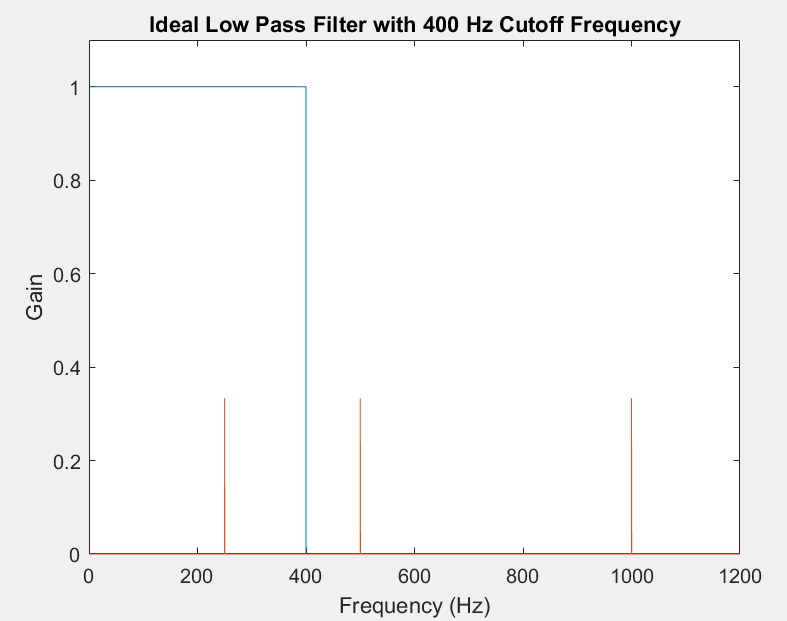

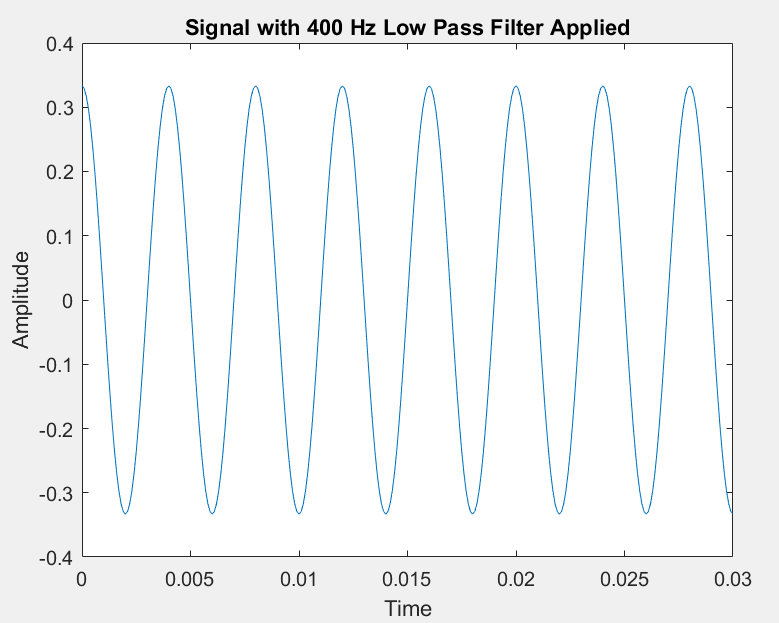

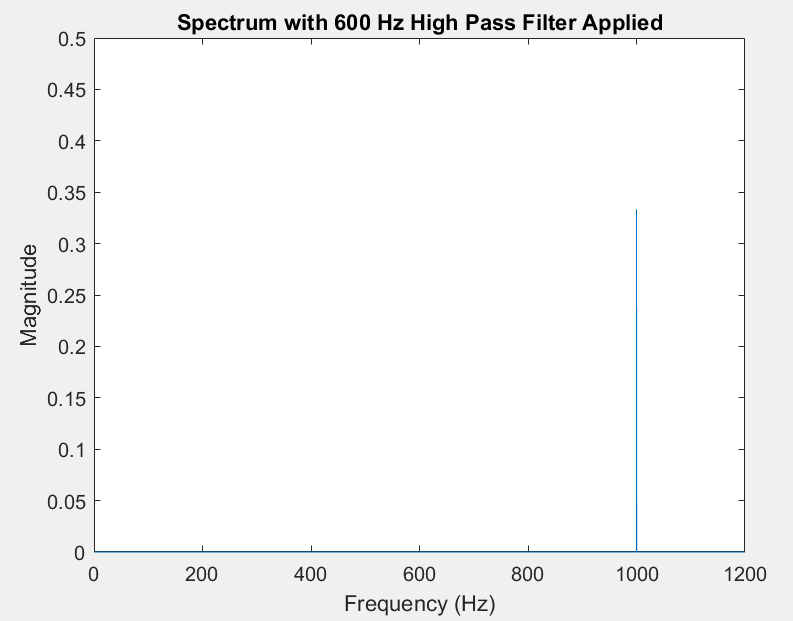

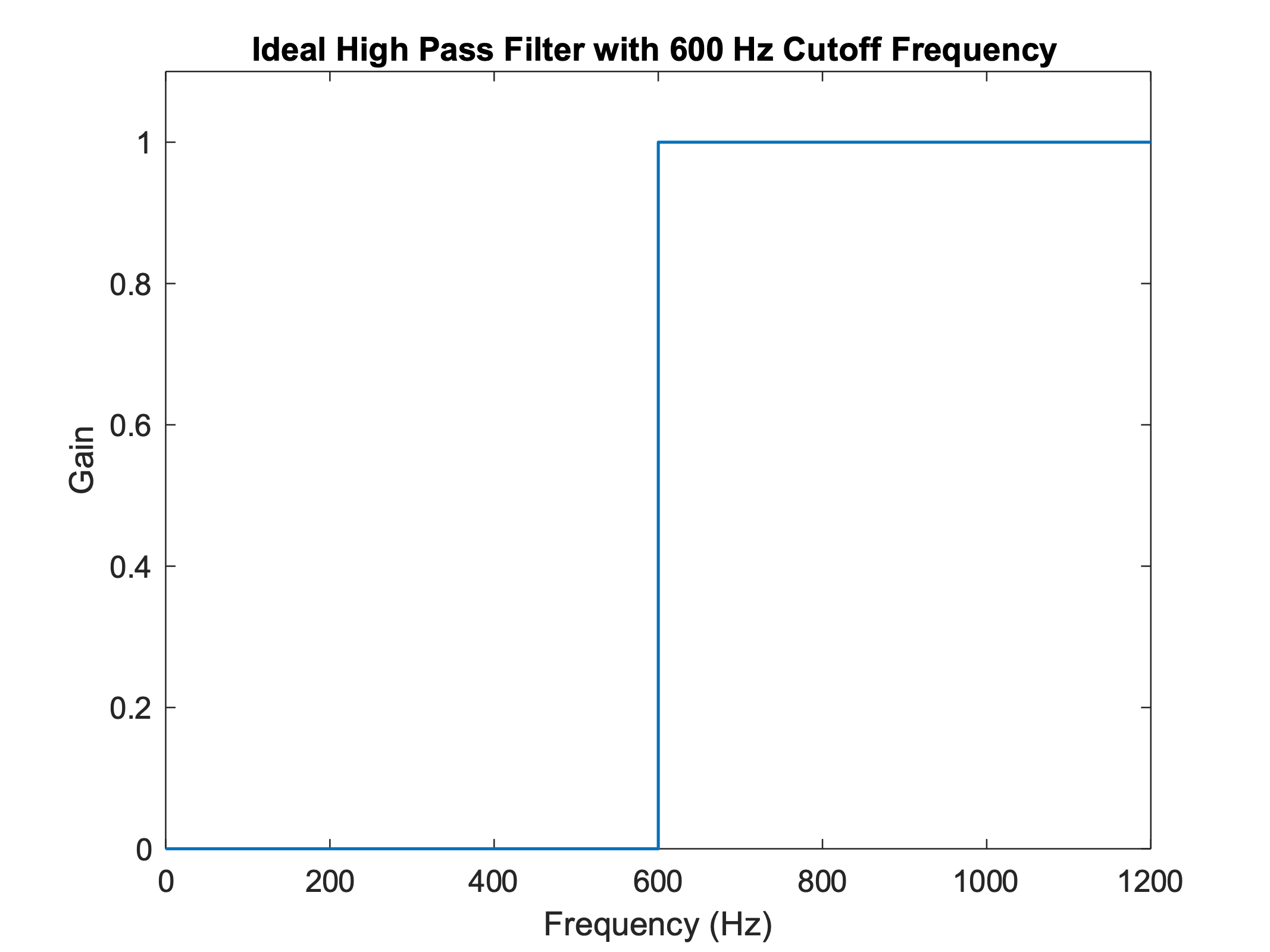

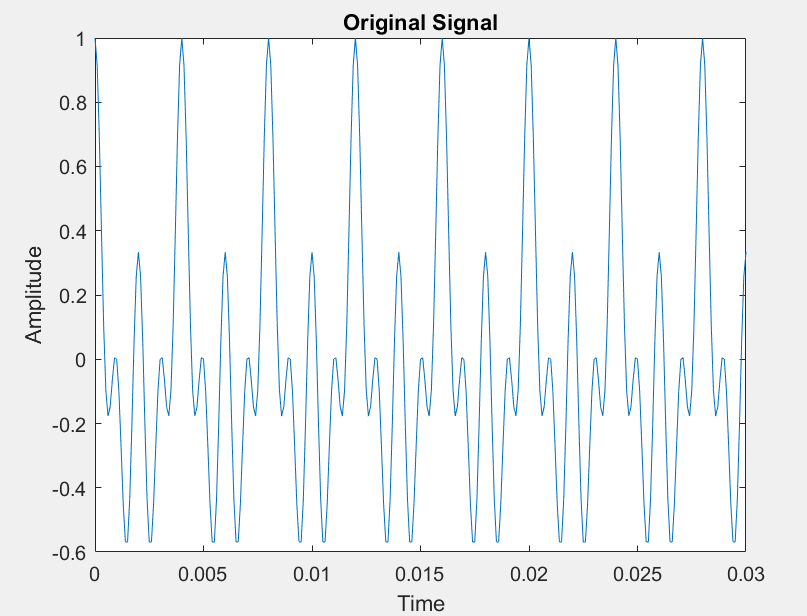

It allows us to describe a filter in terms of what it does to the spectrum of a signal.

Analog systems and filters

Most of the processing of signals is performed in the digital realm

But there are also analog systems and filters

For example, a microphone, before the A-to-D converter, is an analog system

Input: sound waves, analog

Output: voltage signal, analog

The principles are the same (although there are also significant differences)

The concepts are easier to understand and observe with analog systems

So we’ll focus on analog LTI systems for the rest of the lecture

$x\left( t \right) \rightarrow y\left( t \right) \Rightarrow x\left( t - T \right) \rightarrow y(t - T)$

$x_{1}\left( t \right) \rightarrow y_{1}\left( t \right),x_{2}\left( t \right) \rightarrow y_{2}\left( t \right) \Rightarrow ax_{1}\left( t \right) + bx_{2}\left( t \right) \rightarrow ay_{1}\left( t \right) + by_{2}\left( t \right)$

Determine which ones are LTI.

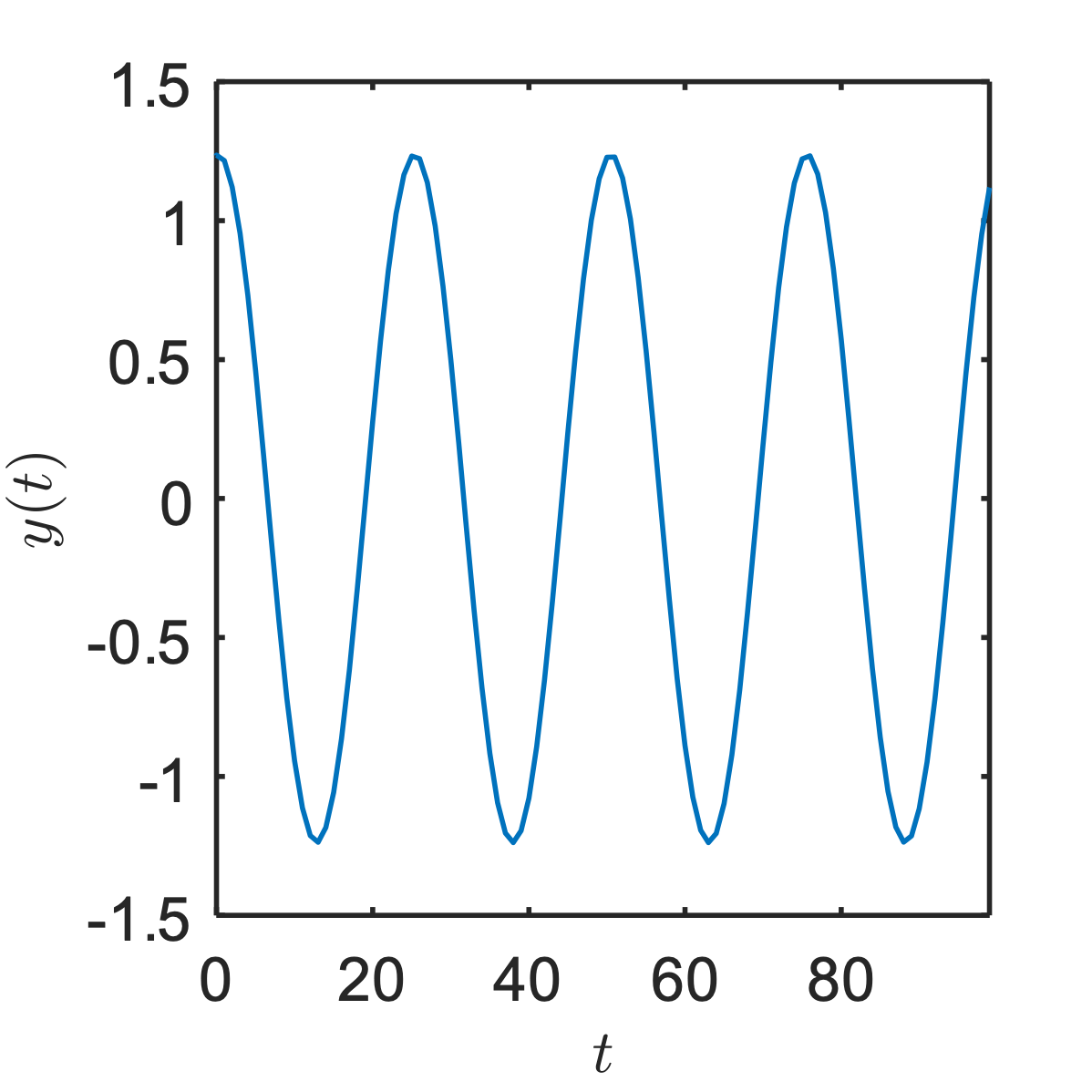

$y\left( t \right) = \frac{1}{2}x\left( t - \frac{1}{6} \right)$ $y\left( t \right) = x(3t)$ $y\left( t \right) = \frac{dx\left( t \right)}{dt}$ $y\left( t \right) = \frac{1}{2\pi}\frac{dx\left( t \right)}{dt} - \frac{1}{\left( 2\pi \right)^{2}}\frac{d^{2}x\left( t \right)}{dt^{2}}$ $y\left( t \right) = x\left( t \right)^{2} - x(t/2)$

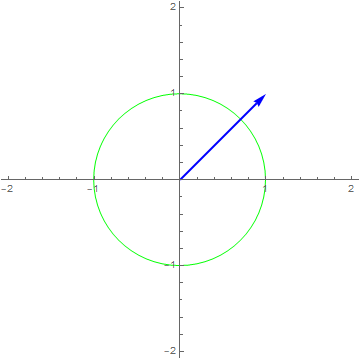

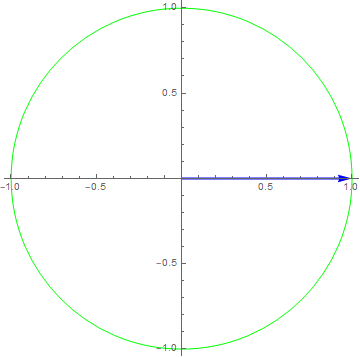

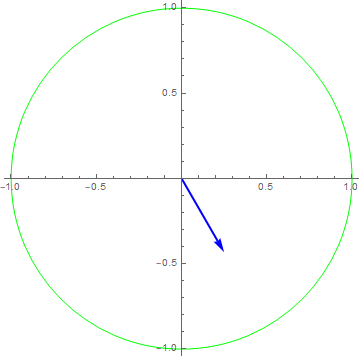

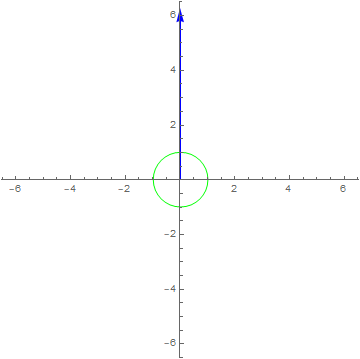

In the next section we look at what these systems do to a single frequency, which turns out to be the whole story for the LTI ones.
